Discontinued
Superseded to PRO507040

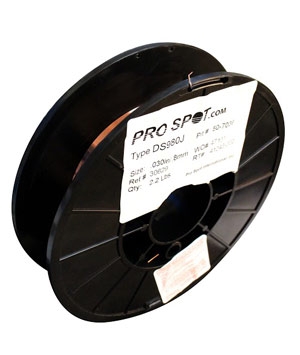

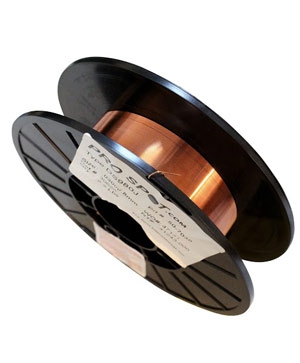

DS980J Solid Welding Wire - 1 Roll


Item Number: PRO507039    Supplier: PRO SPOT INTERNATIONAL INC

Description

When MAG welding high strength steel (HSS), it is necessary to meet or exceed the panel tensile strength with the welding wire. This welding wire should be used when welding HSS between 500 MPa and 980 MPa (73 ksi and 142 ksi). Using a lower tensile strength welding wire will result in a weaker than intended weld joint resulting in an improper repair.

Features

1000 MPa (145 ksi) Tensile

Benefits

High strength weld matches up to 980 MPa (142 ksi) steel

Warranty

Consumable, no warranty.

Product Specifications

  • At 0.2% Proof Stress: 990 MPa (144 ksi)
  • Overall Diameter: 8" (203 mm)
  • Shaft / Spool Hole: 2" (52.5 mm)
  • Tensile Strength: 1011 MPa (147 ksi)
  • Weight (1 Roll): 2 kg (4.4 lbs.)
  • Width: 2.25" (56 mm)
  • Wire Diameter: Ф 0.8 mm
