Revolution Walk Away Tire Changer

Item Number: HUNTCR1X Supplier: HUNTER ENGINEERING COMPANY

Description

Revolution™ Tire Changer —The easiest tire changer to use in the industry. Tire Changing is an all day task, not a race for single tires. Assembly after assembly, the Revolution™ outpaces conventional equipment. The Revolution TCR1X with WalkAway makes bead breaking and demounting autonomous for tires 2-4 in a set. This can speed a 4-tire mount and balance operation by 25%, or much more!

Features

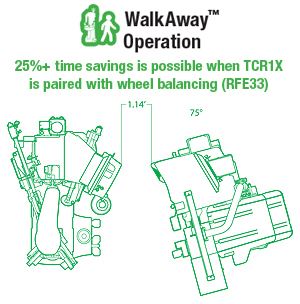

WalkAway™ Operation
- 80-second unattended bead breaking and demounting process
- When paired with wheel balancing, 25%+ time savings is possible
Automatic Adds Simplicity
- Same procedure for all tires and wheels
- Operator experience no longer a factor
“Go” Pedal Controls Operation
- Press “Go” to make selection
- Hold “Go” to to advance procedure
Space Saving Wheel Lift
- Spindle lifts tire directly into position
- Built-in wheel lift reduces overall footprint
Intuitive touchscreen interface indicates operator’s current step and monitors progress
Camera monitors operation throughout to identify incorrect operation and verify proper work
Bead loosening rollers work best for widest variety of tires
Powered press arms assist on demand
Leverless tool head demounts without levers and prevents damage to tire and rim
Powerful pneumatic center clamp holds wheel secure

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

Air Consumption: 1 SCFM (27 L/Min)
Air Supply Requirements: 125 ± 25 psi (8.6 ± 1.7 bar)
Bead Loosening Type: Upper / Lower Roller
Clamping type: Center w/ Quick Clamp
Depth: 67 in (1,702 mm) Wheel lift up, 78 in. (1,981 mm) - Wheel lift down
Drive: variable up to 15 rpm CW / CCW, Torque: 875 ft-lbs (1186 Nm)
Height: 86 in. (2,184 mm)
Match mounting capable: Yes
Maximum Tire Diameter: 50 in. (1,270 mm)
Maximum Wheel Width: 15 in. (381 mm)
Mount / Demount Tool: Polymer Self Inserting Leverless
Power requirements: 208-230V, 1 phase, 60Hz, 24A, NEMA 30 amp plug, L6-30P, 5,520 watts
Rim diameter range: 12 - 30 in. (305 - 762 mm)
Shipping weight: 1,856 lbs (842 kg)
Width: 52 in. (1,321 mm)
